مكان المنشأ: | الصين |
---|---|
اسم العلامة التجارية: | Runpaq |
إصدار الشهادات: | NONE |
رقم الموديل: | K33 |
الحد الأدنى لكمية: | 1000 قطعة |
تفاصيل التغليف: | كرتون |
وقت التسليم: | 15-21 يومًا |
شروط الدفع: | T / T ، L / C ، D / A ، D / P ، ويسترن يونيون |
القدرة على العرض: | 200000 مجموعة / شهر |
الجهد العادي: | بطارية ليثيوم 2.5-5VDC | تطبيق: | فتح / إغلاق صمام التسخين |
---|---|---|---|
تيار تشغيل فارغ: | <40 مللي أمبير (23 درجة مئوية) (المحرك # 300) | الحالي عند التحميل الكامل: | حوالي 650 مللي أمبير |
محرك: | محرك DC2.5V # 300 | عزم الدوران: | 2 ميل بحري (1600: 1) |
وقت الفتح / الإغلاق: | أقل من 10 ثوانٍ (1600: 1) | نسبة الانخفاض: | 2000: 1 (للصمام الكروي DN15 - 25) ؛ |
حماية: | IP67 | نموذج: | K33 |

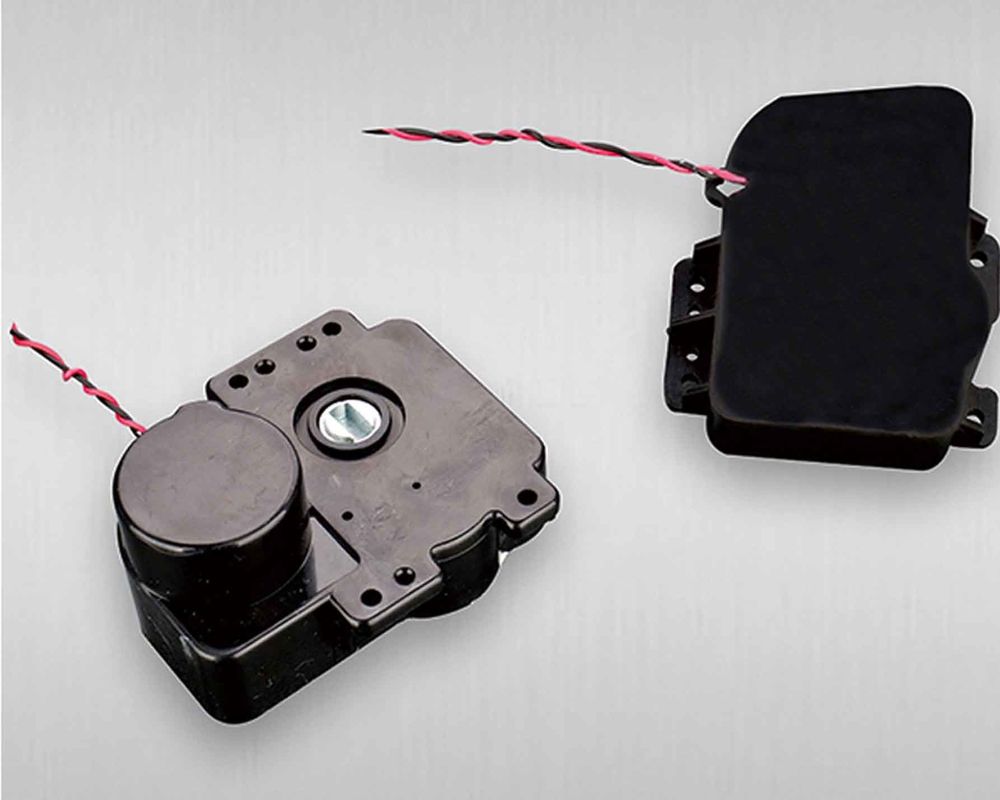

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.
Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
